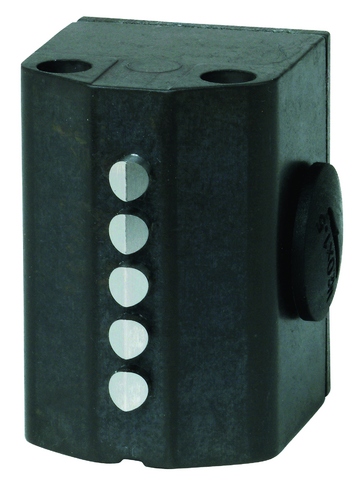

Euchner 095352E | SN02R08-614-M : Multiple Limit Switch
The SN02R08-614-M is a versatile multiple limit switch designed for precise control in various applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 1.0 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 2A gG |
thermal rated current Ith: | 2 A |
Approach speed: | 0.01 … 50 m/min |
Number of switching elements: | 2 |
Design: | upright |
Actuating force: | min. 15 N |
Installation Orientation: | any |
Mechanical Life: | 10 x 10? |
Switching principle: | Snap-action switching contact(Contact bounce time ? 2 ms) |
Degree of protection: | IP67 |
Plunger spacing: | 8 mm |
Ambient temperature: | -5 … +80 °C |
Item designation: | SN02R08-614-M |
Gross weight: | 0,134kg |
ECLASS: | 27-27-06-02 Multi-position switch |
Number of changeover contacts: | 2 |
Product Number | Variant Description |
---|---|
SN02R08-614-M : Multiple Limit Switch | (No others) |
