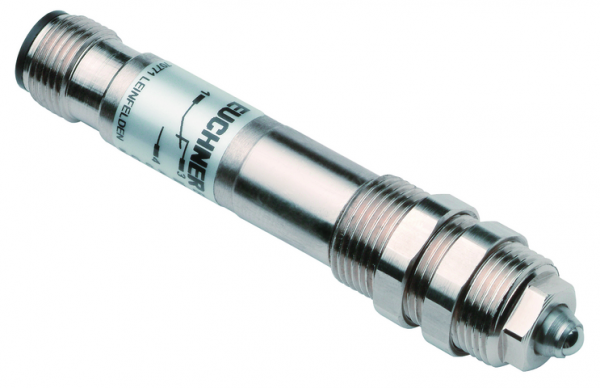

Euchner 095112E | EGT12ASFM5C2083 : Single Hole Limit Switch
A single hole limit switch designed for precise position detection in various applications.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 50 V |
| Short circuit protection according to IEC 60269-1: | 0.4A gG |
| Approach speed: | 0.01 … 8 m/min |
| Connection Type: | Plug connector(5-pin) |
| Number of NO contacts: | 1 |
| Design: | Thread M12 x 1 |
| Actuating element: | Rounded plunger(long) |
| Actuating force: | 16 N |
| Installation Orientation: | any |
| Mechanical Life: | 5 x 10? |
| Switching principle: | Reed contact |
| Degree of protection: | IP67(Mating connector inserted and screwed tight.) |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | EGT12ASFM5C2083 |
| Gross weight: | 0,057kg |
| ECLASS: | 27-27-06-01 Position switch (Type 1) |
| Repeat Accuracy (absolute): | ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
