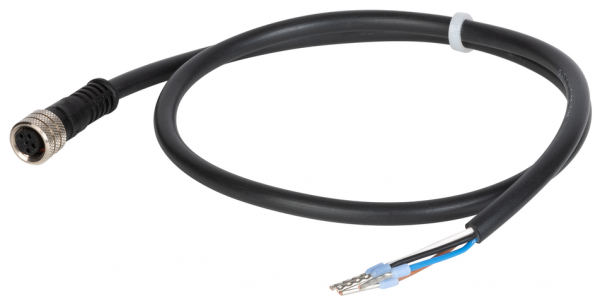

Euchner 095035E | C-M08F04-04X025PV25,0-ES-095035 : Connecting Cable
Connecting cable designed for reliable electrical connections in various applications.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP67(in the inserted state) |
| Item designation: | C-M08F04-04X025PV25,0-ES-095035 |
| Gross weight: | 0,848kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Rated voltage: | 36 V |
| Cable Outlet: | straight |
| Number of pins: | 4 |
| Plug lock: | Screw connection |
| Tightening torque: | 0.3 Nm |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -5 … +70 °C |
| Cable ambient temperature (static): | -30 … +80 °C |
| Cable length: | 25 m |
| Conductor Identification: | Color code |
| Conductor Cross-section: | 0.25 mm² |
| Number of conductors: | 4 |
| Cable Type: | straight |
| Sheath Color: | black |
| Drag chain suitability: | no |
| Conductor End: | Cable end sleeve |
| Product Number | Variant Description |
|---|---|
| C-M08F04-04X025PV25,0-ES-095035 : Connecting Cable | (No others) |
