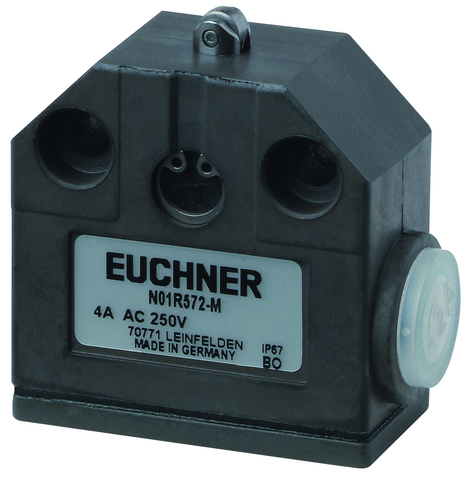

Euchner 094746E | N01R572-MC2043 : Single Plunger
The N01R572-MC2043 is a single plunger limit switch designed for efficient operation in various industrial applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 1 mm²(Soldered connection) |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 5A gG |
thermal rated current Ith: | 5 A |
Approach speed: | 0.01 … 50 m/min |
Actuating force: | 15 … 20 N |
Installation Orientation: | any |
Mechanical Life: | 0.5 x 10? |
Switching principle: | Changeover contact with snap-action function |
Degree of protection: | IP67 |
Ambient temperature: | -5 … +125 °C(Can be used at 180 °C 200 h) |
B10D: | 20 x 10? |
Item designation: | N01R572-M |
Gross weight: | 0,087kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Number of door position NO contacts: | 1(Changeover contact) |
Number of door position NC contacts: | 1 Changeover contact |
