| Connection Cross Section: |
0.34 … 1.5 mm² |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
4A gG |
| thermal rated current Ith: |
4 A |
| Approach speed: |
max. 20 m/min |
| Actuating force: |
35 N |
| Installation Orientation: |
any |
| Mechanical Life: |
2 x 10? |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-25 … +80 °C |
| Item designation: |

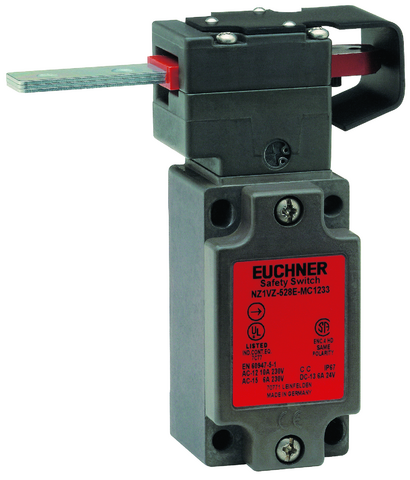

NZ1VZ-538E-MC1233 |
| Gross weight: |
0,357kg |
| ECLASS: |
27-27-26-02 Safety switch with separate actuator (Type 2) |
| Overtravel: |
4 mm |
| Approach direction: |
A |
| Number of door position positively driven contacts: |
2 |
| Extraction Force: |
35 N |
| Actuation frequency: |
max. 1200 1/h |
| Insertion Depth: |
52 mm |
| Retention Force: |
8 N |
