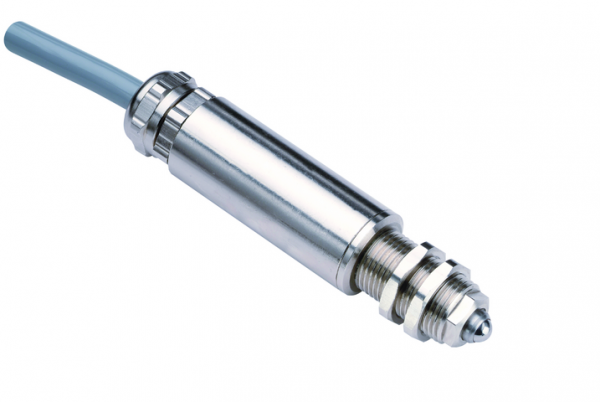

Euchner 092026E | EGT4-5000 : Single Hole Limit Switch
The EGT4-5000 single hole limit switch is engineered for reliable position detection, ensuring safety and efficiency in machinery operations.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.5 mm² |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | 2A gG |
| Approach speed: | 0.01 … 10 m/min |
| Connection Type: | PUR cable(nine-core) |
| Number NC contacts: | 2 |
| Number of NO contacts: | 2 |
| Design: | Thread M18 x 1 |
| Actuating element: | Ball plunger(short) |
| Actuating force: | 15 N |
| Installation Orientation: | any |
| Mechanical Life: | 0.5 x 10? |
| Switching principle: | Snap-action switching contact |
| Degree of protection: | IP67 |
| Item designation: | EGT4-5000 |
| Gross weight: | 0,776kg |
| ECLASS: | 27-27-06-01 Position switch (Type 1) |
| Cable ambient temperature (static): | -25 … +70 °C |
| Cable length: | 5 m |
| Product Number | Variant Description |
|---|---|
| EGT4-5000 : Single Hole Limit Switch | (No others) |
