| Rated insulation voltage Ui: |
30 V |
| Rated impulse voltage Uimp: |
1.5 kV |
| Switching current: |
5 … 100 mA |
| Connection Type: |
Screw terminal, 4-pin |
| Number of switching elements: |
2 Normally open contact |
| Actuating force: |
max. 50 N(from stage 2 to 3) |
| Installation Orientation: |
any |
| Ambient temperature: |
-5 … +60 °C |
| B10D: |
0.75 x 10? |
| Item designation: |

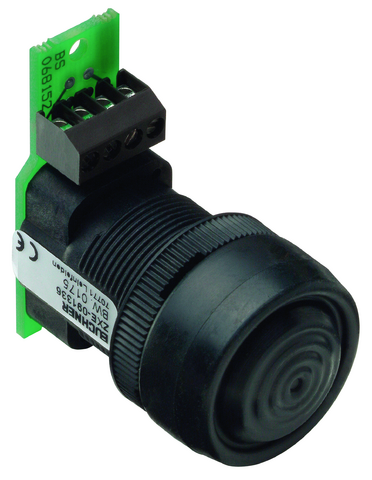

ZXE-091336 |
| Gross weight: |
0,072kg |
| ECLASS: |
27-37-12-38 Agreement switch |
| Degree of contamination (external, according to EN 60947-1): |
3 |
| Rated Conditional Short-circuit Current: |
100 A |
| Breaking capacity: |
max. 0.25 W |
| Stripping length: |
5 mm |
| in compliance with: |
DIN EN 60947-5-8 |
| Rated actuating force according to EN 60947-5-8: |
100 |
