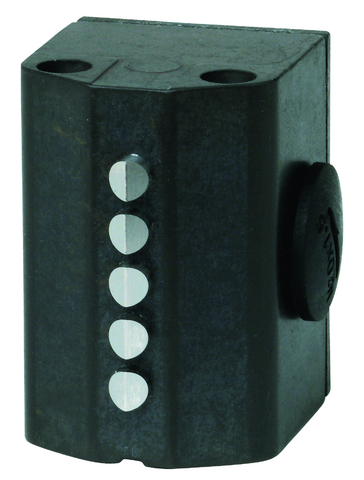

Euchner 091271E | NG2VS-510SVM5 : Single Plunger

The NG2VS-510SVM5 is a high-quality single plunger switch designed for efficient and accurate functionality in automation systems.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 50 V
    Rated impulse voltage Uimp: 1.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG
    thermal rated current Ith: 4 A
    Approach speed: 0.01 … 20 m/min
    Actuating force: 15 … 30 N
    Installation Orientation: any
    Mechanical Life: 30 x 10?
    Contact bounce time: max. 3 ms
    Switching principle: Snap-action switching contact
    Schließzeit: max. 4 ms
    Degree of protection: IP67
    Ambient temperature: -25 … +80 °C
    Item designation: NG2RS-510SVM5
    Gross weight: 0,343kg
    ECLASS: 27-27-06-01 Position switch (Type 1)
    Number of door position NO contacts: 1
    Number of door position NC contacts: 1
    Product Number Variant Description
    NG2VS-510SVM5 : Single Plunger (No others)
