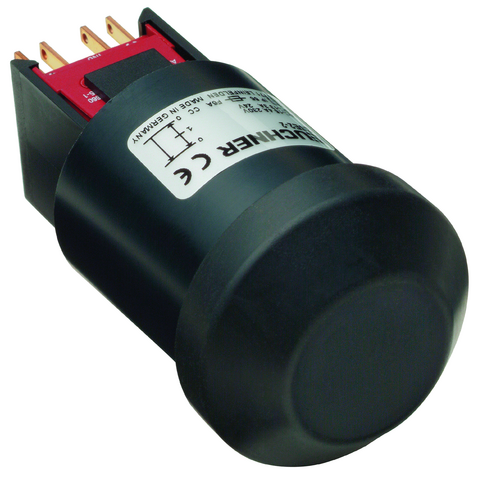

Euchner 091098E | ZSE2-4C1801 : Enabling Pushbutton
The ZSE2-4C1801 is an enabling pushbutton designed for safety applications, providing a reliable means to control machinery and ensure operator safety.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG |
Connection Type: | Tab connector 2.8 x 0.8 IEC 760 + soldered connection |
Number of NO contacts: | 2 |
Number of positively driven contacts: | 2 |
Installation Orientation: | any |
Switching principle: | Slow-action contact element |
Ambient temperature: | -5 … +60 °C |
B10D: | 0.5 x 10? |
Item designation: | ZSE2-4C1801 |
Gross weight: | 0,11kg |
ECLASS: | 27-37-12-38 Agreement switch |
Degree of contamination (external, according to EN 60947-1): | 3 |
Rated Conditional Short-circuit Current: | 100 A |
Mounting cut-out: | D30 (EN IEC 60947-5-1) |
in compliance with: | 60947-5-8 |
Product Number | Variant Description |
---|---|
ZSE2-4C1801 : Enabling Pushbutton | (No others) |
