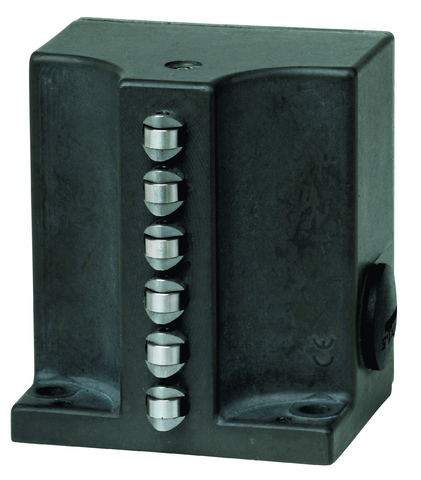

Euchner 091082E | ES514 : Snap Switch
The ES514 is a snap switch designed for quick and reliable operation in safety applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 4 kV |
Short circuit protection according to IEC 60269-1: | 6A gG |
thermal rated current Ith: | 10 A |
Approach speed: | 0.01 … 80 m/min |
Number of switching elements: | 3 |
Number of NO contacts: | 3 |
Number of positively driven contacts: | 3 |
Design: | upright |
Actuating force: | min. 30 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Switching principle: | Snap-action switching contact(Contact closing time ? 5 ms, contact bounce time ? 3 ms) |
Degree of protection: | IP67 |
Plunger spacing: | 12 mm |
Ambient temperature: | -5 … +80 °C |
B10D: | 2 x 10? |
Item designation: | SN03R12-514-M |
Gross weight: | 0,46kg |
ECLASS: | 27-27-06-02 Multi-position switch |
Product Number | Variant Description |
---|---|
ES514 : Snap Switch | (No others) |
