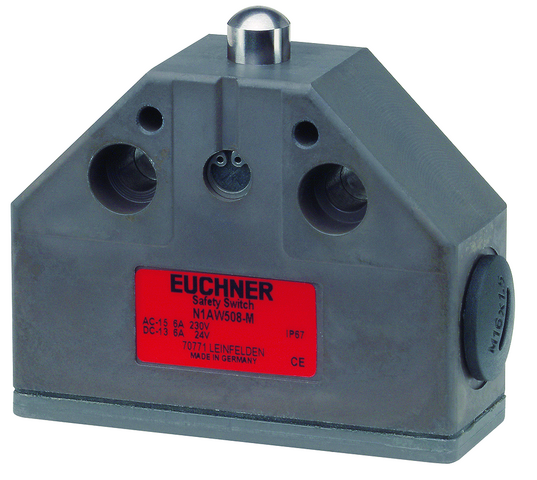

Euchner 090743E | N1AW514SVM5-M : Single Plunger
The N1AW514SVM5-M is a reliable single plunger actuator designed for precise control in various applications.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 50 V |
Rated impulse voltage Uimp: | 1.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG |
thermal rated current Ith: | 4 A |
Approach speed: | 0.01 … 10 m/min |
Number of switching elements: | 1 |
Number of NO contacts: | 1 |
Number of positively driven contacts: | 1 |
Design: | Housing according to DIN 43693 |
Actuating element: | Rounded plunger |
Actuating force: | min. 30 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Contact bounce time: | max. 3 ms |
Switching principle: | Snap-action switching contact |
Schließzeit: | max. 5 ms |
Degree of protection: | IP67(only screwed tight with the related mating connector.) |
Ambient temperature: | -25 … +80 °C |
B10D: | 2 x 10? |
Item designation: | N1AW514SVM5-M |
Gross weight: | 0,316kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Product Number | Variant Description |
---|---|
N1AW514SVM5-M : Single Plunger | (No others) |
