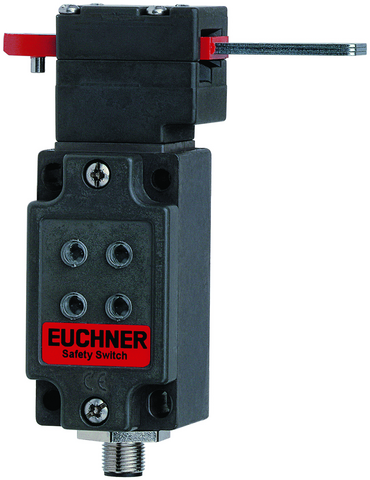

Euchner 090742E | NZ2VZ-538ESEM4AS1 : Safety Switch

The NZ2VZ-538ESEM4AS1 is a safety switch that ensures secure operation and compliance with safety standards.

Request a quote

    Attribute Value
    Approach speed: max. 20 m/min
    Actuating force: 35 N
    Installation Orientation: any
    Mechanical Life: 2 x 10?
    Switching principle: Slow-action switching contact
    Degree of protection: IP67
    Ambient temperature: -20 … +55 °C
    Item designation: NZ2VZ-538ESEM4AS1
    Gross weight: 0,36kg
    ECLASS: 27-27-26-02 Safety switch with separate actuator (Type 2)
    Overtravel: 16 mm
    Extraction Force: 35 N
    Actuation frequency: max. 1200 1/h
    Insertion Depth: 52 mm
    Retention Force: 8 N
    ASI operating current: max. 45 mA
    AS-Interface protocol: ASi-3
    ASI data out: D1 = LED red, D2 = LED green
    ASI data in: D0, D1 = door position (1st positively driven contact), D2,D3 = door position (2nd positively driven contact)
    AS-Interface slave type: ID-Code B, EA-Code 7
    ASI voltage: 22.5 … 30 … 31.6 V
    Product Number Variant Description
    NZ2VZ-538ESEM4AS1 : Safety Switch (No others)
