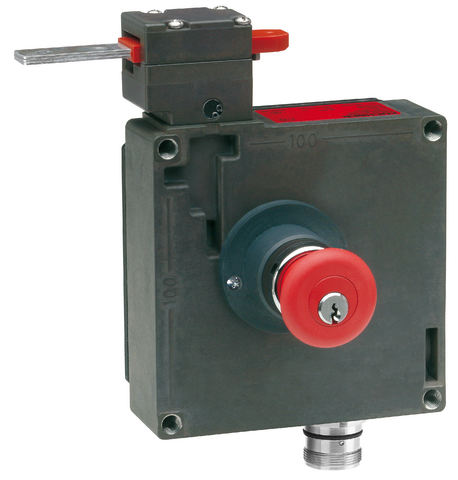

Euchner 090353E | TZ1RE024RC18VAB-C1828 : Safety Switch

The TZ1RE024RC18VAB-C1828 is a reliable safety switch designed to ensure operational safety in various applications.

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Rated insulation voltage Ui: 50 V
    Rated impulse voltage Uimp: 1.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG(> 70 °C => 2A gG)
    thermal rated current Ith: 4 A(>70 °C =>2 A)
    Approach speed: max. 20 m/min
    Actuating force: 35 N
    Installation Orientation: any
    Mechanical Life: 1 x 10?
    Switching principle: Slow-action switching contact
    Degree of protection: IP65
    Ambient temperature: -25 … +80 °C
    Item designation: TZ1RE024RC18VAB-C1828
    Gross weight: 1,468kg
    ECLASS: 27-27-26-03 Safety switch with guard control
    Overtravel: 16 mm
    Locking force FZh: 1500 N
    Guard locking principle: Closed-circuit current principle
    LED Display: Operating voltage corresponds to the solenoid voltage(2 LEDs; green, red)
    Number of door position NO contacts: 1
    Number of door position positively driven contacts: 3
    Extraction Force: 30 N
    Actuation frequency: max. 1200 1/h
    Insertion Depth: 52 mm
    Retention Force: 10 N
    Locking force Fmax: 2000 N
    Power consumption: 10 W
    Solenoid Duty Cycle: 100 %
    Number of guard lock monitoring positively driven contacts: 2
    Number of guard lock monitoring NO contacts: 2
    Lid: black
