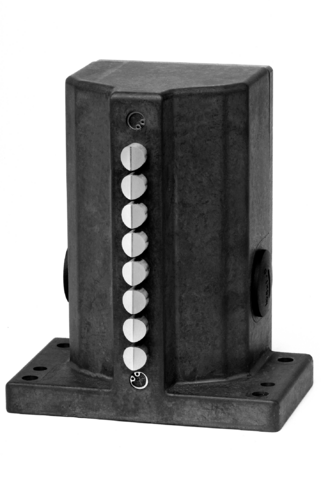

Euchner 090139E | RGBF12R12-502-M : Multiple Limit Switch

The RGBF12R12-502-M is a versatile multiple limit switch that offers dependable control and safety in automated systems.

Request a quote

    Attribute Value
    Connection Cross Section: 0.34 … 1.5 mm²
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 8A gG
    thermal rated current Ith: 8 A
    Approach speed: 0.01 … 80 m/min
    Number NC contacts: 12
    Number of switching elements: 12
    Number of NO contacts: 12
    Design: upright, according to DIN 43697
    Actuating force: min. 20 N
    Installation Orientation: any
    Mechanical Life: 30 x 10?
    Switching principle: Snap-action switching contact(Contact closing time<4 contact bounce time<3)
    Degree of protection: IP67
    Plunger spacing: 12 mm
    Ambient temperature: -5 … +80 °C
    Item designation: RGBF12R12-502-M
    Gross weight: 1,968kg
    ECLASS: 27-27-06-02 Multi-position switch
    Product Number Variant Description
    RGBF12R12-502-M : Multiple Limit Switch (No others)
