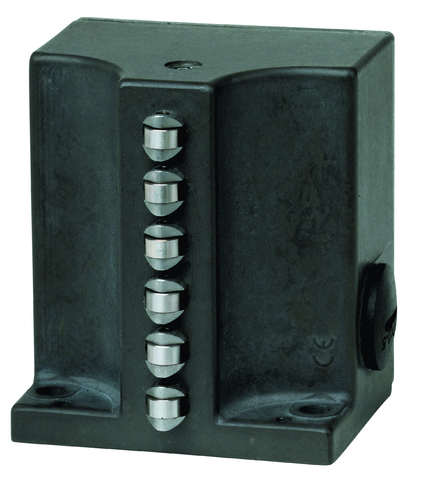

Euchner 089634E | SN02D12-502-MC1794 : Multiple Limit Switch
$773.33
Explore the Euchner 089634E | SN02D12-502-MC1794 : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 089634E |
| Connection Type: | 1 x plug connector M23(Coninvers, UC-12P1N1280DU, 12-pin, with screened 3,000 mm cable. Mounted on right) |
| Installation Orientation: | any |
| Storage temperature: | -25 … 80 °C |
| Degree of protection: | IP67(only screwed tight with the related mating connector) |
| Ambient temperature: | -5 … 80 °C |
| Order Number: | 089634 |
| Item designation: | SN02D12-502-MC1794 |
| Gross weight: | 0,609kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-06-02 Multi-position switch |
| Mechanical Life: | 30 x 10? |
| Rated insulation voltage Ui: | 50 V |
| Rated impulse voltage Uimp: | 1.5 kV |
| Fuse: | max. 8 A gG |
| Approach Speed: | 0.01 … 40 m/min |
| Design: | upright |
| Actuating force: | min. 20 N |
| Switching principle: | Snap-action switching contact |
| Number of switching elements: | 2 |
| Number of NO contacts: | 2 |
| Actuating element: | Chisel plunger |
| Contact bounce time: | max. 3 ms |
| Closing Time: | max. 4 ms |
| Plunger spacing: | 12 mm |
| Number NC contacts: | 2 |
| Additional information: | Housing without earth conductor!(All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN IEC 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures.) |
| Operating point accuracy: | ± 0,002(The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.) |
