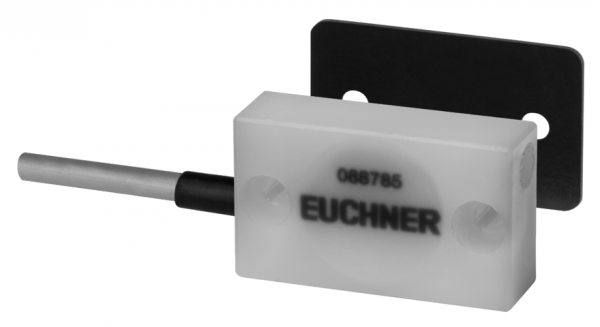

Euchner 088785E | CES-A-LCA-10V : Read Head
The CES-A-LCA-10V is a read head that interfaces with various sensors for accurate position detection.
| Attribute | Value |
|---|---|
| Connection Type: | hard-wired encapsulated connecting cable |
| Installation Orientation: | any |
| Degree of protection: | IP67 |
| Item designation: | CES-A-LCA-10V |
| Gross weight: | 0,343kg |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Power Supply: | via evaluation unit |
| Cable ambient temperature (dynamic): | -5 … +50 °C |
| Cable ambient temperature (static): | -25 … +50 °C |
| Connecting cable: | PVC, length 10m, Ø 4.6 mm, with crimped ferrules |
| Method of Operation: | inductive |
| Product Number | Variant Description |
|---|---|
| CES-A-LCA-10V : Read Head | (No others) |
