| Connection Cross Section: |
max. 1.5 mm²(Screw terminal) |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
10A gG |
| thermal rated current Ith: |
10 A |
| Approach speed: |
0.01 … 50 m/min |
| Actuating force: |
15 … 20 N |
| Installation Orientation: |
any |
| Mechanical Life: |
10 x 10? |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-25 … +70 °C |
| B10D: |
20 x 10? |
| Item designation: |

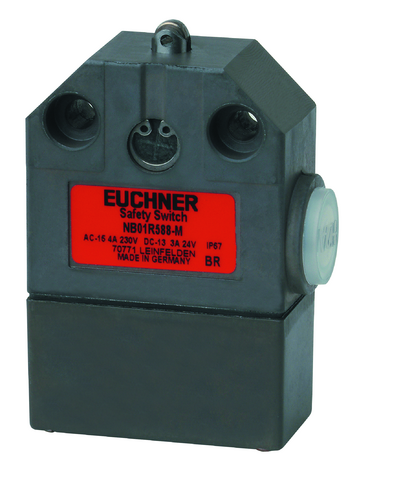

NB01R588-M |
| Gross weight: |
0,11kg |
| ECLASS: |
27-27-06-01 Position switch (Type 1) |
| Additional feature: |
with low temperature grease |
| Number of door position positively driven contacts: |
1 |
