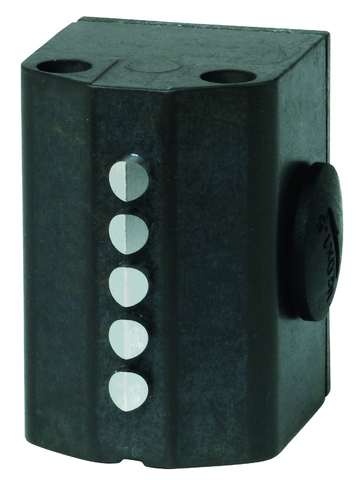

Euchner 088142E | SN03D08-MC1094 : Multiple Limit Switch
The SN03D08-MC1094 is a reliable multiple limit switch designed for precise position detection in various applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 1.0 mm²(Soldered connection) |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 10A gG |
thermal rated current Ith: | 10 A |
Approach speed: | 0.01 … 20 m/min |
Connection Type: | 2 x M16 x 1.5 |
Number NC contacts: | 3 |
Number of switching elements: | 3 |
Number of NO contacts: | 3 |
Design: | upright |
Actuating element: | Chisel plunger |
Actuating force: | 15 … 20 N |
Installation Orientation: | any |
Mechanical Life: | 10 x 10? |
Switching principle: | Snap-action switching contact |
Operating point accuracy: | ± 0,02(The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element has been run-in with approx. 2000 operating cycles.) |
Degree of protection: | IP67 |
Plunger spacing: | 8 mm |
Ambient temperature: | -5 … +80 °C |
Item designation: | SN03D08-MC1094 |
Gross weight: | 0,164kg |
ECLASS: | 27-27-06-02 Multi-position switch |
Operating point: | 2.5 … 3 … 3.5 |
Product Number | Variant Description |
---|---|
SN03D08-MC1094 : Multiple Limit Switch | (No others) |
