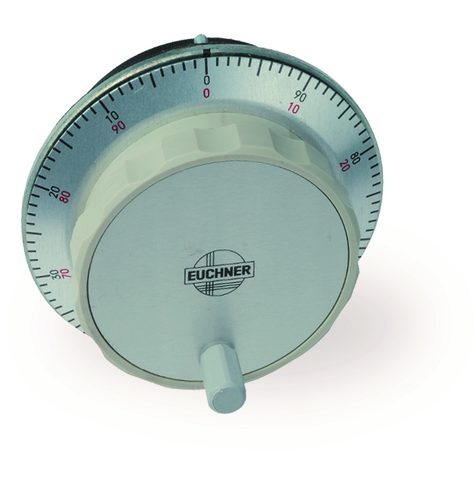

Euchner 087733E | HKC100S100A05 : Hand Wheel
$1,605.56
Explore the Euchner 087733E | HKC100S100A05 : Hand Wheel. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 087733E |
| Operating voltage DC: | 5 V DC -5% … +5% |
| Connection Type: | Screw terminal, 7-pin |
| Storage temperature: | -25 … 70 °C |
| Ambient temperature: | 0 … 50 °C |
| Order Number: | 087733 |
| Item designation: | HKC100S100A05 |
| Gross weight: | 0,375kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-24-23-07 Command-, control-, signal appliance |
| Material: | Aluminum |
| Shock And Vibration Resistance: | according to EN 60068-2-27/-2-6 |
| Connection Cross Section: | 0.08 … 1.5 mm² |
| Output Type: | RS422 |
| Output voltage: | in accordance with RS422A |
| Pulses Per Revolution: | 2×100 |
| Detent Positions Per Revolution: | 100 |
| Detent mechanism: | Magnetic |
| Tightening torque: | max. 0.25 Nm |
| Connection cross section AWG: | 28 … 16 AWG |
