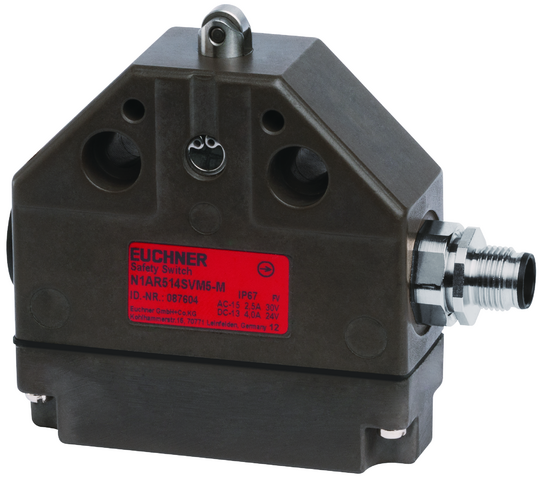

Euchner 087604E | N1AR514SVM5-M : Single Plunger

The N1AR514SVM5-M is a robust single plunger actuator, ideal for applications requiring consistent performance.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 50 V
    Rated impulse voltage Uimp: 1.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG
    thermal rated current Ith: 4 A
    Approach speed: 0.01 … 80 m/min
    Number of switching elements: 1
    Number of NO contacts: 1
    Number of positively driven contacts: 1
    Design: Housing according to DIN 43693
    Actuating element: Roller plunger
    Actuating force: min. 30 N
    Installation Orientation: any
    Mechanical Life: 1 x 10?
    Contact bounce time: max. 3 ms
    Switching principle: Snap-action switching contact
    Schließzeit: max. 5 ms
    Degree of protection: IP67(only screwed tight with the related mating connector.)
    Ambient temperature: -25 … +80 °C
    B10D: 2 x 10?
    Item designation: N1AR514SVM5-M
    Gross weight: 0,28kg
    ECLASS: 27-27-06-01 Position switch (Type 1)
    Roller diameter: 8 mm
    Product Number Variant Description
    N1AR514SVM5-M : Single Plunger (No others)
