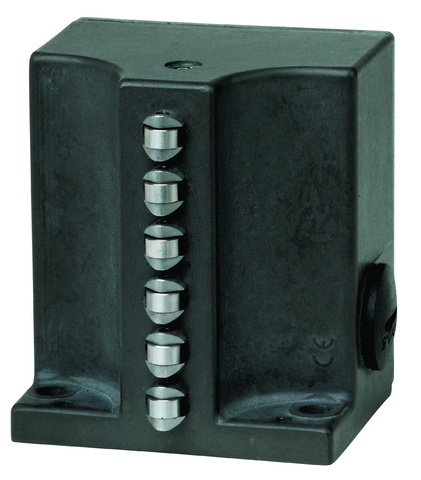

Euchner 087190E | SN02W12-502-MC1900 : Multiple Limit Switch
$1,027.78
Explore the Euchner 087190E | SN02W12-502-MC1900 : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 087190E |
| Installation Orientation: | any |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP40 |
| Ambient temperature: | -25 … 60 °C |
| Order Number: | 087190 |
| Item designation: | SN02W12-502-MC1900 |
| Gross weight: | 0,325kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-06-02 Multi-position switch |
| Mechanical Life: | 30 x 10? |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Fuse: | max. 8 A gG |
| Connection Cross Section: | 0.34 … 1.5 mm² |
| thermal rated current Ith: | 8 A |
| Approach Speed: | 0.01 … 10 m/min |
| Design: | upright |
| Actuating force: | min. 20 N |
| Switching principle: | Snap-action switching contact |
| Number of switching elements: | 2 |
| Number of NO contacts: | 2 |
| Actuating element: | Rounded plunger(Attention A shorter mechanical life is to be anticipated with a side approach direction.) |
| Contact bounce time: | max. 3 ms |
| Closing Time: | max. 4 ms |
| Plunger spacing: | 12 mm |
| Number NC contacts: | 2 |
| Operating point accuracy: | ± 0,2(The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.) |
