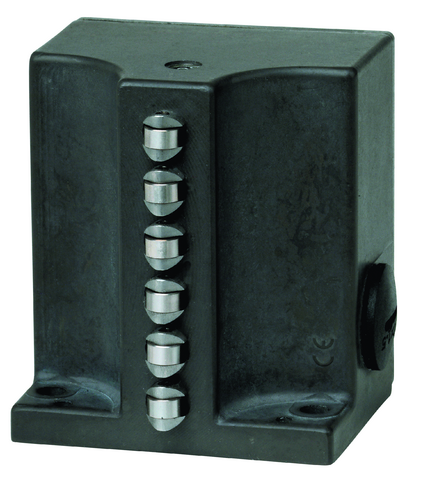

Euchner 087083E | SN02R12-514-MC1985 : Multiple Limit Switch
$1,044.44
Explore the Euchner 087083E | SN02R12-514-MC1985 : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 087083E |
| Connection Type: | 2 x M20 x 1.5 |
| Installation Orientation: | any |
| Storage temperature: | -25 … 80 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | -5 … 80 °C |
| Order Number: | 087083 |
| Item designation: | SN02R12-514-MC1985 |
| Gross weight: | 0,381kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-06-02 Multi-position switch |
| Mechanical Life: | 1 x 10? |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 4 kV |
| Fuse: | max. 6 A gG |
| Connection Cross Section: | 0.34 … 1.5 mm² |
| thermal rated current Ith: | 10 A |
| Approach Speed: | 0.01 … 120 m/min |
| Design: | upright |
| Actuating force: | min. 25 N |
| Switching principle: | Snap-action switching contact |
| B10D: | 2 x 10? |
| Number of switching elements: | 2 |
| Number of NO contacts: | 2 |
| Number of positively driven contacts: | 2 |
| Actuating element: | Roller plunger(Ball bearing) |
| Contact bounce time: | max. 3 ms |
| Roller diameter: | 8 mm |
| Closing Time: | max. 5 ms |
| Plunger spacing: | 12 mm |
