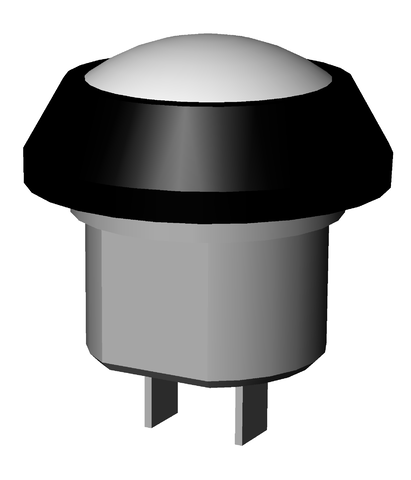

Euchner 086755E | DRUCKTASTER WEISS 1S : Push Button
White push button switch for user activation.
| Attribute | Value |
|---|---|
| Switching current: | max. 100 mA |
| Connection Type: | Soldered connection |
| Number of switching elements: | 1 Normally open contact |
| Mechanical Life: | 1 x 10? |
| Switching principle: | Slow-action switching element |
| Degree of protection: | IP67(when installed) |
| Ambient temperature: | max. +125 °C |
| Item designation: | DRUCKTASTER WEISS 1S |
| Gross weight: | 0,008kg |
| Contact Resistance: | max. 50 m? |
| Included Accessories: | Nut and seal included |
| Color: | White |
| Switching characteristics: | Key function |
| Electrical Life: | min. 0.5 x 10? |
| Product Number | Variant Description |
|---|---|
| DRUCKTASTER WEISS 1S : Push Button | DRUCKTASTER ROT 1S : Push Button |
| DRUCKTASTER WEISS 1S : Push Button | DRUCKTASTER GRUEN 1S : Push Button |
| DRUCKTASTER WEISS 1S : Push Button | DRUCKTASTER GELB 1S : Push Button |
| DRUCKTASTER WEISS 1S : Push Button | DRUCKTASTER BLAU 1S : Push Button |
| DRUCKTASTER WEISS 1S : Push Button | DRUCKTASTER WEISS 1S BESCHRIFTET : |
| DRUCKTASTER WEISS 1S : Push Button | DRUCKTASTER WEISS 1S BESCHRIFTET : |
