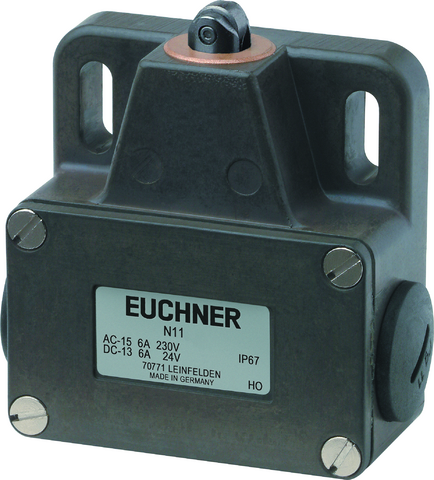

Euchner 086313E | N11R-M : Single Plunger
The N11R-M offers a durable single plunger mechanism ideal for industrial applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 16A gG |
thermal rated current Ith: | 10 A |
Approach speed: | 0.01 … 80 m/min |
Actuating force: | min. 20 N |
Installation Orientation: | any |
Mechanical Life: | 30 x 10? |
Switching principle: | Snap-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -5 … +80 °C |
B10D: | 20 x 10? |
Item designation: | N11R-M |
Gross weight: | 0,199kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Number of door position NO contacts: | 1 |
Number of door position NC contacts: | 1 |
Product Number | Variant Description |
---|---|
N11R-M : Single Plunger | (No others) |
