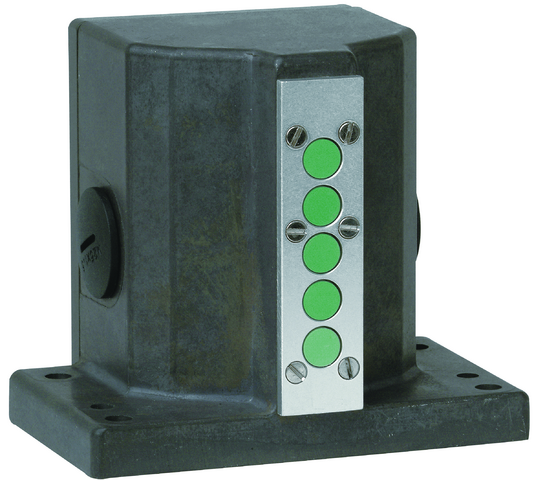

Euchner 086028E | RGBF02X16-772L-M : Multiple Limit Switch
The RGBF02X16-772L-M is a high-performance multiple limit switch designed for demanding environments and applications.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm²(Screw terminals) |
Rated insulation voltage Ui: | 60 V |
Number of switching elements: | 2 |
Design: | upright, according to DIN 43697 |
Switching principle: | NO + NC |
Degree of protection: | IP67 |
Ambient temperature: | -25 … +70 °C |
Additional information: | (Switching elements with 5 mm operating distances (16 mm proximity switch spacing) are supplied with two different oscillator frequencies to avoid mutual interference. Multiple limit switches must therefore be assembled alternately with these switching elements.) |
Item designation: | RGBF02X16-772L-M |
Gross weight: | 0,661kg |
ECLASS: | 27-27-06-02 Multi-position switch |
EMC protection requirements: | EN IEC 60947-5-2 |
Output Type: | PNP |
Off-state Current Ir: | max. 0.001 mA |
Switching frequency: | max. 500 Hz |
Switching hysteresis: | max. 0.5 mm |
Reverse Polarity Protection: | yes |
LED Display: | yes |
Rated operating distances Sn: | 5 mm |
Assured operating distances Sa: | 0 … 4 mm(Dimension applies only to steel (ST37) and to EUCHNER trip dogs of series UX.. / GX..) |
Rated operating current Ie: | 250 mA |
Short Circuit And Overload Protection, Pulsed: | yes |
No-load Current I0: | 15 |
Residual Ripple: | max. 10 % |
Voltage drop Ud: | max. 2.5 V |
Number of NC contacts/NO contacts (NO + NC): | 2 |
Proximity switch spacing: | 16 mm |
