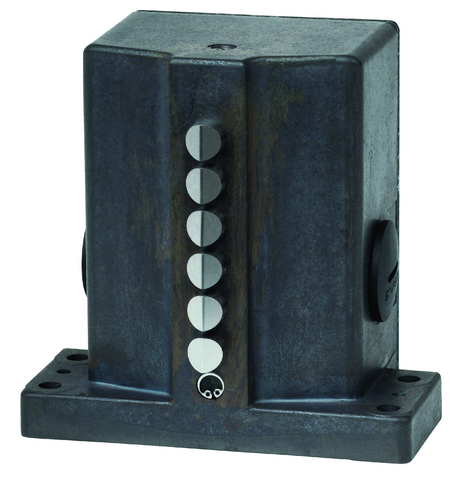

Euchner 085925E | GSBF06R12-502LE060-M : Multiple Limit Switch

$3,382.22

Explore the Euchner 085925E | GSBF06R12-502LE060-M : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!

Request a quote

    Attribute Value
    Product Code: 085925E
    Installation Orientation: any
    Storage temperature: -25 … 80 °C
    Degree of protection: IP67
    Ambient temperature: -5 … 80 °C
    Order Number: 085925
    Item designation: GSBF06R12-502LE060-M
    Gross weight: 1,092kg
    Customs tariff number: 85365019000
    ECLASS: 27-27-06-02 Multi-position switch
    Mechanical Life: 30 x 10?
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Fuse: max. 8 A gG
    Connection Cross Section: 0.34 … 1.5 mm²
    thermal rated current Ith: 8 A
    Approach Speed: 0.01 … 80 m/min
    Design: upright
    Actuating force: min. 20 N
    Switching principle: Snap-action switching contact(Contact closing time<4 ms contact bounce time<3 ms)
    Number of switching elements: 6
    Number of NO contacts: 6
    Plunger spacing: 12 mm
    Global Trade Item Number (GTIN): 4047048001848
    Number NC contacts: 6
