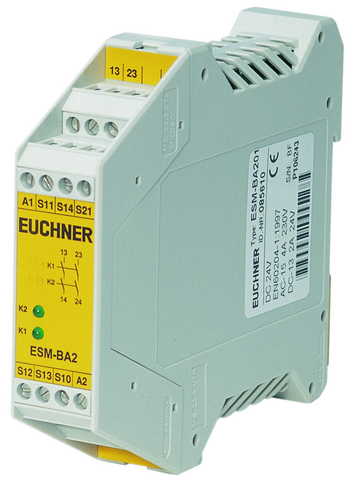

Euchner 085610E | ESM-BA201 : Safety Relay
The ESM-BA201 safety relay provides essential safety functions for machinery, ensuring operational reliability.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 250 V |
| Switching current: | min.20 mAat 24V |
| Degree of protection: | IP20 |
| Item designation: | ESM-BA201 |
| Gross weight: | 0,202kg |
| ECLASS: | 27-37-18-19 Device for monitoring of safety-related circuits |
| Degree of contamination (external, according to EN 60947-1): | 2 |
| Contact material: | AgSnO2 |
| Mounting method: | Mounting rail 35mm according to DIN EN 60715 TH35 |
| Connection: | Connection terminals |
| Number of safety contacts: | 2 |
| Overvoltage category according to IEC EN 60664-1: | 3 |
| Connection Cross-section: | 0,14 … 2,5 mm²(Connection terminal (size)) |
| LED Indicator: | 2 status displays (green) for relays K1 and K2 |
| Breaking capacity according to UL: | 6A 250V AC / 2A 24V DC per contact |
| In compliance with: | EN ISO 13849-1 2015; EN 62061 2005 + AC 2010 + A1 2013 + A2 2015; EN 50581 2012 (RoHS) |
| Performance Level: | PL e(This value is dependent on the number of switching cycles and the switching current.) |
| Category: | 4(This value is dependent on the number of switching cycles and the switching current.) |
| PFHD: | 1.2 x 10-8(This value is dependent on the number of switching cycles and the switching current.) |
| Mission time: | 20 y(This value is dependent on the number of switching cycles and the switching current.) |
| Product Number | Variant Description |
|---|---|
| ESM-BA201 : Safety Relay | ESM-BA203 : Safety Relay |
| ESM-BA201 : Safety Relay | ESM-BA202 : Safety Relay |
| ESM-BA201 : Safety Relay | ESM-BA201P : Safety Relay |
