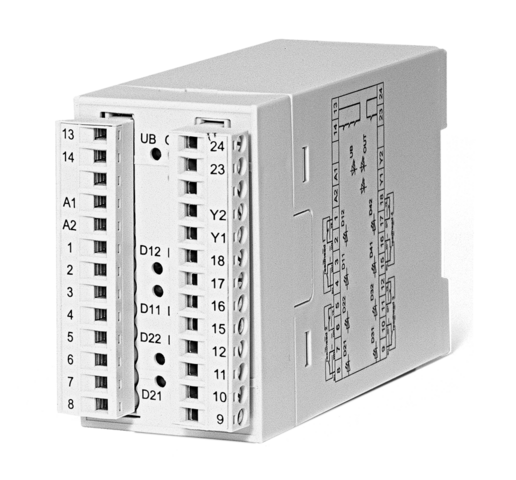

Euchner 085537E | CMS-E-BR : Evaluation Unit
The CMS-E-BR evaluation unit allows for comprehensive analysis and evaluation of system performance.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 2.5 mm² |
Rated insulation voltage Ui: | 250 V |
Connection Type: | Connection terminals, plug-in |
Mechanical Life: | 30 x 10? |
Degree of protection: | Terminals IP20 / housing IP40 |
Ambient temperature: | 0 … +50 °C |
Item designation: | CMS-E-BR |
Gross weight: | 0,331kg |
ECLASS: | 27-27-24-02 Safety-related magnetic proximity switch |
Mounting type: | TH 35 mounting rail (EN IEC 60715) |
Risk time according to EN 60947-5-3: | max. 20 ms |
Current consumption: | 250 mA |
Degree of contamination (external, according to EN 60947-1): | 2 |
Secured Switch-off Distance Sar: | max. 17 mm(The assured release distance s_ar corresponds to the reset distance.) |
Performance Level: | PL d(This value depends on the number of switching cycles and the switching current.applies to protected wiring. With unprotected wiring and if more than one doorthan one door has to be opened with frequency or if the wiring is unprotected and more thanmore than 5 doors are connected in series, the following applies Performance Level = PL c, PFHD = 1.1E-6.See EN ISO 141192014, section 8.6 and ISO TR 24119.diagnostic coverage according to ISO TR 24119 must result in at least the value ‘low’ in order to achieve PLd is achieved.) |
Category: | 3(This value is dependent on the number of switching cycles and the switching current.) |
PFHD: | 1.0 x 10-7(This value depends on the number of switching cycles and the switching current. This valueapplies to protected wiring. With unprotected wiring and if more than one doorthan one door has to be opened with frequency or with unprotected wiring and if more thanmore than 5 doors are connected in series, the following applies Performance Level = PL c, PFHD = 1.1E-6.See EN ISO 141192014, section 8.6 and ISO TR 24119.diagnostic coverage in accordance with ISO TR 24119 must be at least ‘low’ in order to achieve PLd is achieved) |
Mission time: | 20 y(This value is dependent on the number of switching cycles and the switching current) |
LED Display: | 1 indicator LED Power (UB), green, 1 LED safety output (OUT, green/red) 8 LED status indicators (Dx1/Dx2/green/red) |
Number of read heads: | up to 4 read heads |
Approach direction: | Z(If the approach speed is low, the approach direction Z should be avoided.) |
in compliance with: | EN ISO 13849-1 2015; EN 50178 1997; EN ISO 14119 2013; EN 6100-6-3 2007; EN 60947-5-2 2007/A1 2012; EN 60947-5-3 2013 |
Product Number | Variant Description |
---|---|
CMS-E-BR : Evaluation Unit | (No others) |
