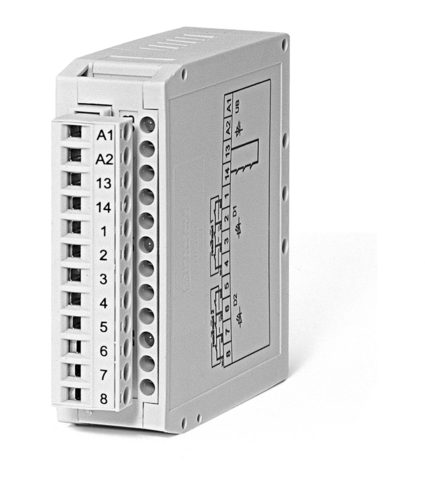

Euchner 085536E | CMS-E-AR : Evaluation Unit

The CMS-E-AR evaluation unit is designed for testing and evaluating sensor performance in various applications.

Request a quote

    Attribute Value
    Connection Cross Section: 0.14 … 2.5 mm²
    Rated insulation voltage Ui: 250 V
    Connection Type: Connection terminals, plug-in
    Mechanical Life: 10 x 10?
    Degree of protection: Terminals IP20 / housing IP40
    Ambient temperature: 0 … +50 °C
    Item designation: CMS-E-AR
    Gross weight: 0,171kg
    ECLASS: 27-27-24-02 Safety-related magnetic proximity switch
    Mounting type: TH 35 mounting rail (EN IEC 60715)
    Risk time according to EN 60947-5-3: max. 10 ms
    Current consumption: 70 mA
    Degree of contamination (external, according to EN 60947-1): 2
    Secured Switch-off Distance Sar: max. 16 mm(The assured release distance s_ar corresponds to the reset distance.)
    Performance Level: PL c(This value is dependent on the number of switching cycles and the switching current.)
    Category: 1(This value is dependent on the number of switching cycles and the switching current.)
    PFHD: 1.1 x 10-6(This value is dependent on the number of switching cycles and the switching current.)
    Mission time: 20 y(This value is dependent on the number of switching cycles and the switching current.)
    LED Display: 1 indicator LED Power (UB) and 2 status indicators for the read heads (D1/D2)
    in compliance with: EN ISO 13849-1 2015 ; EN 50178 1997 ; EN 60204-1 2006/A1 2009 ; EN ISO 14119 2013; EN 6100-6-2 2005; EN 6100-6-3 2007/A12011; EN 60947-5-3 2013
    Product Number Variant Description
    CMS-E-AR : Evaluation Unit (No others)
