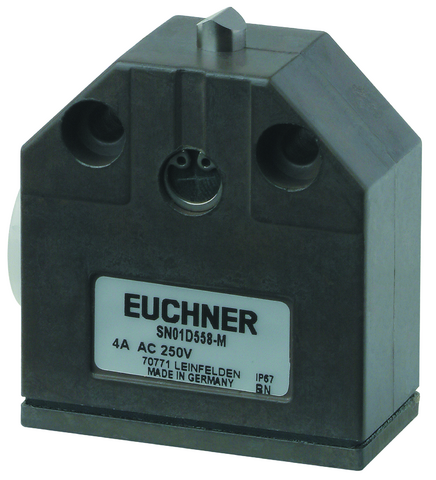

Euchner 085260E | SN01D558-M : Single Plunger
The SN01D558-M Single Plunger is built for precision and durability, making it a versatile choice for many operational needs.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.14 … 1 mm²(Soldered connection) |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 10A gG |
thermal rated current Ith: | 10 A |
Approach speed: | 0.01 … 20 m/min |
Actuating element: | Chisel plunger |
Actuating force: | 15 … 20 N |
Installation Orientation: | any |
Mechanical Life: | 10 x 10? |
Switching principle: | Snap-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -5 … +80 °C |
Item designation: | SN01D558-M |
Gross weight: | 0,104kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Number of door position NO contacts: | 1 |
Number of door position NC contacts: | 1 |
Product Number | Variant Description |
---|---|
SN01D558-M : Single Plunger | (No others) |
