| Connection Cross Section: |
0.14 … 1 mm²(Screw terminal) |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
6A gG |
| thermal rated current Ith: |
6 A |
| Approach speed: |
0.01 … 20 m/min |
| Actuating element: |
Chisel plunger |
| Actuating force: |
15 … 20 N |
| Installation Orientation: |
any |
| Mechanical Life: |
10 x 10? |
| Switching principle: |
Changeover contact with snap-action function |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-5 … +80 °C |

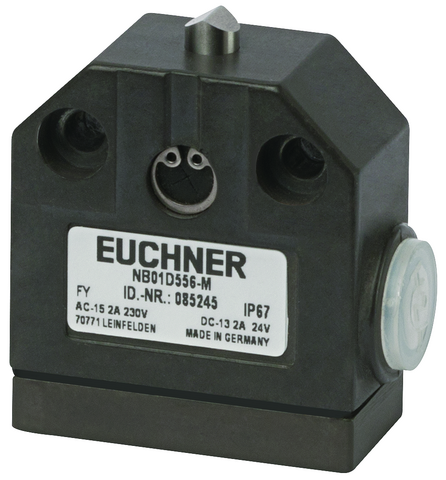

| Item designation: |
NB01D556-M |
| Gross weight: |
0,091kg |
| ECLASS: |
27-27-06-01 Position switch (Type 1) |
| Number of door position NO contacts: |
1(Changeover contact) |
| Number of door position NC contacts: |
1(Changeover contact) |
