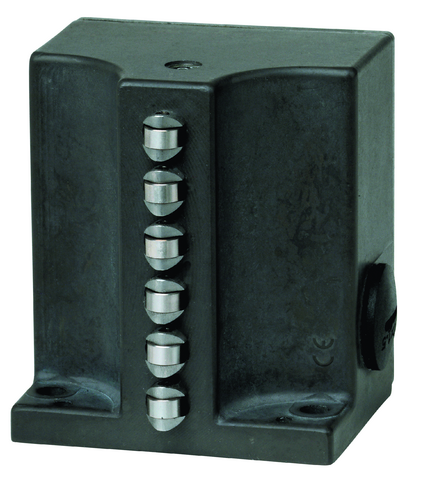

Euchner 084851E | SN06R12-514-MC1946 : Multiple Limit Switch
$6,117.78
Explore the Euchner 084851E | SN06R12-514-MC1946 : Multiple Limit Switch. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 084851E |
| Connection Type: | 1 x Harting plug connector Han 24 DD(Contacts D = 1.6 mm, wiring 0.75 mm²) |
| Installation Orientation: | any |
| Storage temperature: | -25 … 80 °C |
| Degree of protection: | IP65(In the inserted and screwed tight state) |
| Ambient temperature: | -5 … 80 °C |
| Order Number: | 084851 |
| Item designation: | SN06R12-514-MC1946 |
| Gross weight: | 0,973kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-06-02 Multi-position switch |
| Mechanical Life: | 1 x 10? |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2 kV |
| Fuse: | max. 6 A gG |
| thermal rated current Ith: | 10 A |
| Approach Speed: | 0.01 … 120 m/min |
| Design: | upright |
| Actuating force: | min. 25 N |
| Switching principle: | Snap-action switching contact |
| B10D: | 2 x 10? |
| Number of switching elements: | 6 |
| Number of NO contacts: | 6 |
| Number of positively driven contacts: | 6 |
| Actuating element: | Roller plunger(Ball bearing) |
| Contact bounce time: | max. 3 ms |
| Roller diameter: | 8 mm |
| Closing Time: | max. 5 ms |
| Plunger spacing: | 12 mm |
