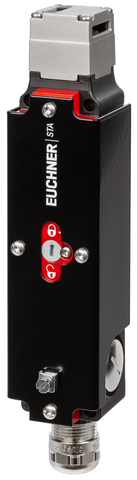

Euchner 084455E | NM03VZA-M : Safety Switch

NM03VZA-M is a reliable safety switch that ensures safe operation and prevents unauthorized access.

Request a quote

    Attribute Value
    Connection Cross Section: 0.34 … 1.5 mm²
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG
    thermal rated current Ith: 4 A
    Approach speed: max. 20 m/min
    Design: long housing
    Actuating force: 10 N
    Installation Orientation: any
    Mechanical Life: 1 x 10?
    Switching principle: Slow-action switching contact
    Degree of protection: IP67
    Ambient temperature: -20 … +80 °C
    Item designation: NM03VZA-M
    Gross weight: 0,104kg
    ECLASS: 27-27-26-02 Safety switch with separate actuator (Type 2)
    Overtravel: 4 mm
    Number of door position positively driven contacts: 3
    Extraction Force: 10 N
    Actuation frequency: max. 7000 1/h
    Insertion Depth: 20 mm
    Retention Force: 2 N
    Product Number Variant Description
    NM03VZA-M : Safety Switch NM03VZA-M/V100 : Safety Switch
