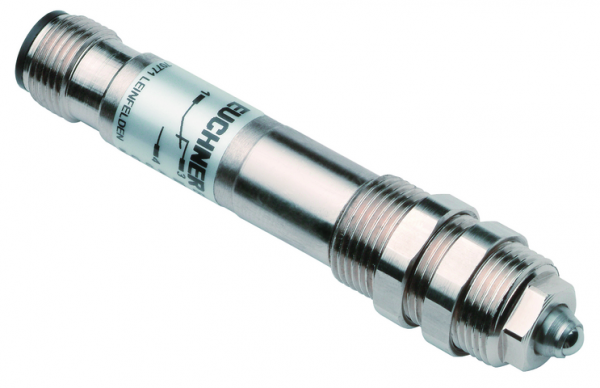

Euchner 084000E | EGT11R2N50SAM4 : Single Hole Limit Switch
The EGT11R2N50SAM4 is a single hole limit switch, designed to provide accurate position feedback in various machinery.
Request a quote
Attribute | Value |
---|---|
Rated insulation voltage Ui: | 50 V |
Short circuit protection according to IEC 60269-1: | 0.4A gG |
Approach speed: | max. 8 m/min |
Connection Type: | Plug connector M8 with 50 mm cable section(4-pin) |
Number NC contacts: | 1 |
Design: | Thread M14 x 1 |
Actuating element: | Ball plunger(short) |
Actuating force: | 3 N |
Installation Orientation: | any |
Mechanical Life: | 30 x 10? |
Switching principle: | Reed contact |
Degree of protection: | IP67(Mating connector inserted and screwed tight.) |
Ambient temperature: | -5 … +65 °C |
Item designation: | EGT11R2N50SAM4 |
Gross weight: | 0,06kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Repeat Accuracy (absolute): | ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
Product Number | Variant Description |
---|---|
EGT11R2N50SAM4 : Single Hole Limit Switch | (No others) |
