| Connection Cross Section: |
0.34 … 1.5 mm² |
| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
4 kV |
| Short circuit protection according to IEC 60269-1: |
6A gG |
| thermal rated current Ith: |
10 A |
| Approach speed: |
0.01 … 10 m/min |
| Number of switching elements: |
1 |
| Number of NO contacts: |
1 |
| Number of positively driven contacts: |
1 |

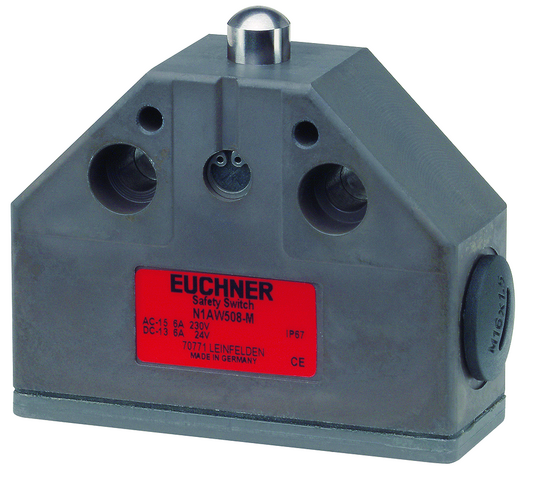

| Design: |
Housing according to DIN 43693 |
| Actuating element: |
Rounded plunger |
| Actuating force: |
min. 30 N |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10? |
| Contact bounce time: |
max. 3 ms |
| Switching principle: |
Snap-action switching contact |
| Schließzeit: |
max. 5 ms |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-25 … +80 °C |
| B10D: |
2 x 10? |
| Item designation: |
N1AW514-M |
| Gross weight: |
0,27kg |
| ECLASS: |
27-27-06-01 Position switch (Type 1) |
