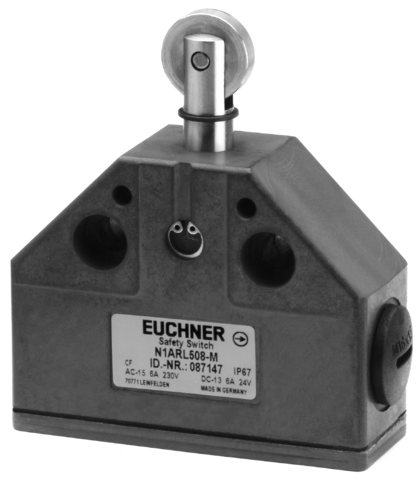

Euchner 083848E | N1ARL502-M : Single Plunger

The N1ARL502-M is a robust single plunger actuator, ideal for applications requiring reliable motion control.

Request a quote

    Attribute Value
    Connection Cross Section: 0.34 … 1.5 mm²
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 8A gG
    thermal rated current Ith: 8 A
    Approach speed: 0.01 … 20 m/min
    Number NC contacts: 1
    Number of switching elements: 1
    Number of NO contacts: 1
    Design: Housing according to DIN 43693
    Actuating element: Extended roller plunger(Slide bearing)
    Actuating force: min. 20 N
    Installation Orientation: any
    Mechanical Life: 30 x 10?
    Contact bounce time: max. 3 ms
    Switching principle: Snap-action switching contact
    Operating point accuracy: ± 0,1(The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.)
    Schließzeit: max. 4 ms
    Degree of protection: IP67
    Ambient temperature: -5 … +80 °C
    Item designation: N1ARL502-M
    Gross weight: 0,232kg
    ECLASS: 27-27-06-01 Position switch (Type 1)
    Roller diameter: 18 mm
    Product Number Variant Description
    N1ARL502-M : Single Plunger N1ARL508-M : Single Plunger
    N1ARL502-M : Single Plunger N1ARL502LE060-M : Single Plunger
    N1ARL502-M : Single Plunger N1ARL502-MC2021 : Single Plunger
