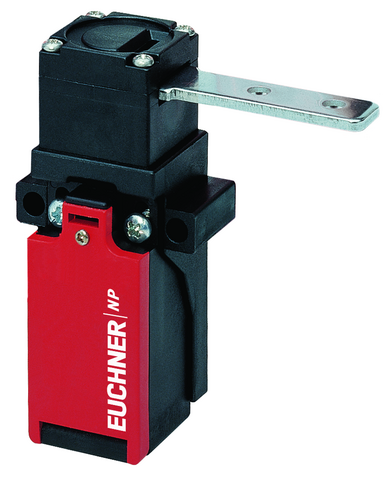

Euchner 083686E | NP1-628AB-M : Safety Switch
Advanced safety switch designed for high-performance applications, ensuring maximum safety.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.34 … 1.5 mm² |
Rated insulation voltage Ui: | 250 V |
Rated impulse voltage Uimp: | 2.5 kV |
Short circuit protection according to IEC 60269-1: | 4A gG |
thermal rated current Ith: | 4 A |
Approach speed: | max. 20 m/min |
Actuating force: | 5 N |
Installation Orientation: | any |
Mechanical Life: | 1 x 10? |
Switching principle: | Slow-action switching contact |
Degree of protection: | IP67 |
Ambient temperature: | -20 … +80 °C |
Item designation: | NP1-628AB-M |
Gross weight: | 0,138kg |
ECLASS: | 27-27-26-02 Safety switch with separate actuator (Type 2) |
Mounting type: | Mounting with 40 mm spacing |
Approach direction: | A |
Number of door position NO contacts: | 1 |
Number of door position positively driven contacts: | 1 |
Extraction Force: | 15 N |
Actuation frequency: | max. 7000 1/h |
Retention Force: | 2 N |
Horizontal Insertion Depth: | 28 mm |
Vertical insertion depth: | 29.5 mm |
Horizontal Overtravel: | 7 mm |
Vertical overtravel: | 1.5 mm |
Product Number | Variant Description |
---|---|
NP1-628AB-M : Safety Switch | (No others) |
