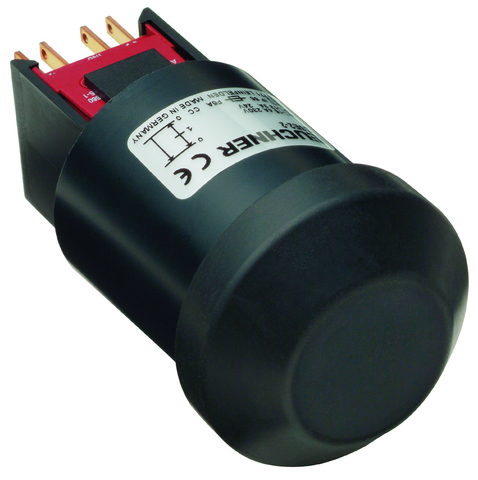

Euchner 083477E | ZSE2-4C1943 : Enabling Pushbutton

The ZSE2-4C1943 is an enabling pushbutton that ensures safe operation by requiring continuous activation for machine functionality.

Request a quote

    Attribute Value
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG
    Connection Type: Tab connector 2.8 x 0.8 IEC 760 + soldered connection
    Number of NO contacts: 2
    Number of positively driven contacts: 2
    Installation Orientation: any
    Switching principle: Slow-action contact element
    Ambient temperature: -5 … +60 °C
    B10D: 0.5 x 10?
    Item designation: ZSE2-4C1943
    Gross weight: 0,096kg
    ECLASS: 27-37-12-38 Agreement switch
    Degree of contamination (external, according to EN 60947-1): 3
    Rated Conditional Short-circuit Current: 100 A
    in compliance with: 60947-5-8
    Product Number Variant Description
    ZSE2-4C1943 : Enabling Pushbutton (No others)
