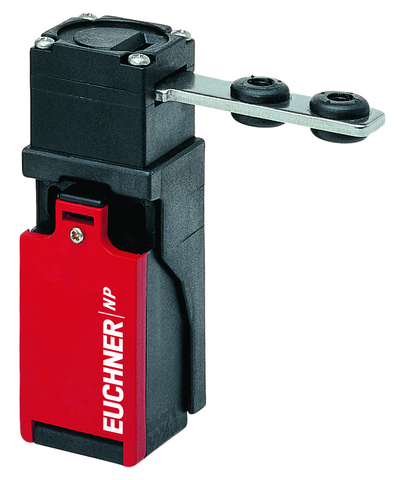

Euchner 082280E | NP1-648AS-M : Safety Switch

The NP1-648AS-M is a robust safety switch designed to ensure the safe operation of machinery by preventing unauthorized access.

Request a quote

    Attribute Value
    Connection Cross Section: 0.34 … 1.5 mm²
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG
    thermal rated current Ith: 4 A
    Approach speed: max. 20 m/min
    Actuating force: 5 N
    Installation Orientation: any
    Mechanical Life: 1 x 10?
    Switching principle: Slow-action switching contact
    Degree of protection: IP67
    Ambient temperature: -20 … +80 °C
    Item designation: NP1-648AS-M
    Gross weight: 0,131kg
    ECLASS: 27-27-26-02 Safety switch with separate actuator (Type 2)
    Mounting type: Mounting according to EN50047
    Approach direction: A
    Number of door position NO contacts: 1
    Number of door position positively driven contacts: 2
    Extraction Force: 15 N
    Actuation frequency: max. 7000 1/h
    Retention Force: 2 N
    Horizontal Insertion Depth: 28 mm
    Vertical insertion depth: 29.5 mm
    Horizontal Overtravel: 7 mm
    Vertical overtravel: 1.5 mm
    Product Number Variant Description
    NP1-648AS-M : Safety Switch (No others)
