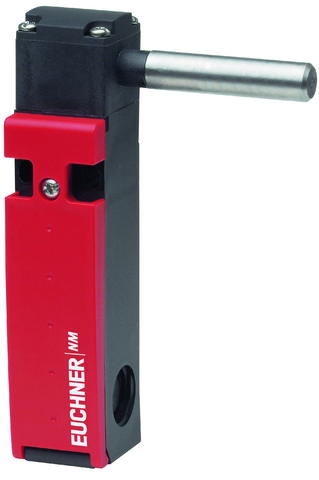

Euchner 079121E | NM03AL-M : Safety Switch

The NM03AL-M safety switch is engineered for high reliability and effective safety management in automated systems.

Request a quote

    Attribute Value
    Connection Cross Section: 0.34 … 1.5 mm²
    Rated insulation voltage Ui: 250 V
    Rated impulse voltage Uimp: 2.5 kV
    Short circuit protection according to IEC 60269-1: 4A gG
    thermal rated current Ith: 4 A
    Approach speed: max. 60 m/min
    Design: long housing
    Installation Orientation: any
    Mechanical Life: 4 x 10?
    Switching principle: Slow-action switching contact
    Degree of protection: IP67
    Ambient temperature: -20 … +80 °C
    Item designation: NM03AL-M
    Gross weight: 0,166kg
    ECLASS: 27-27-26-01 Safety position switch (Type 1)
    Approach direction: Head enclosed
    Number of door position positively driven contacts: 3
    Actuation frequency: max. 5000 1/h
    Actuating torque: 0.1 Nm
    Product Number Variant Description
    NM03AL-M : Safety Switch (No others)
