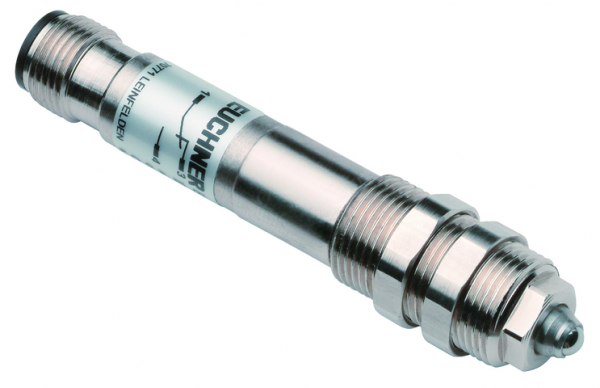

Euchner 078848E | EGT12R5000 : Single Hole Limit Switch
A single hole limit switch for detecting the position of moving parts.
Request a quote
Attribute | Value |
---|---|
Connection Cross Section: | 0.5 mm² |
Rated insulation voltage Ui: | 50 V |
Short circuit protection according to IEC 60269-1: | 0.4A gG |
Approach speed: | 0.01 … 8 m/min |
Connection Type: | PUR cable(two-core) |
Number NC contacts: | 1 |
Design: | Thread M12 x 1 |
Actuating element: | Rounded plunger(short) |
Actuating force: | 16 N |
Installation Orientation: | any |
Mechanical Life: | 30 x 10? |
Switching principle: | Reed contact |
Degree of protection: | IP68 |
Item designation: | EGT12R5000 |
Gross weight: | 0,232kg |
ECLASS: | 27-27-06-01 Position switch (Type 1) |
Cable ambient temperature (static): | -25 … +80 °C |
Cable length: | 5 m |
Repeat Accuracy (absolute): | ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
Product Number | Variant Description |
---|---|
EGT12R5000 : Single Hole Limit Switch | EGT12R5000C2250 : Single Hole Limit Switch |
