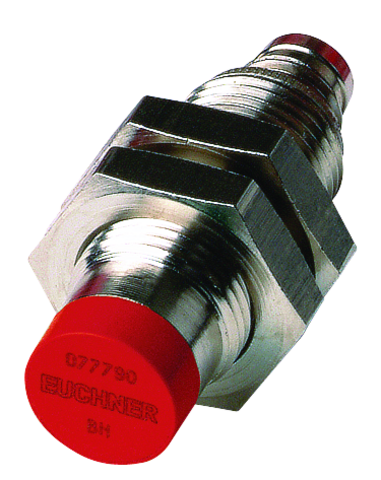

Euchner 077790E | CES-A-LMN-SC : Read Head
The CES-A-LMN-SC is a high-precision read head designed for accurate position sensing in automation applications.
Request a quote
Attribute | Value |
---|---|
Connection Type: | M8 plug connector, 3-pin |
Installation Orientation: | any |
Degree of protection: | IP65/IP67/IP69/IP69K |
Ambient temperature: | -25 … +85 °C |
Item designation: | CES-A-LMN-SC |
Gross weight: | 0,035kg |
ECLASS: | 27-27-24-03 Safety-related transponder switch |
Power Supply: | via evaluation unit |
Method of Operation: | inductive |
Ambient pressure: | max. 10 bar(only on active face in installed state) |
Product Number | Variant Description |
---|---|
CES-A-LMN-SC : Read Head | (No others) |
