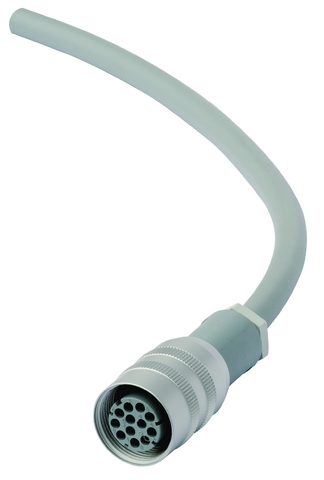

Euchner 077630E | C-M26F12-12X1,00PU10,0-MA-077630 : Cable
$728.89
Explore the Euchner 077630E | C-M26F12-12X1,00PU10,0-MA-077630 : Cable. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 077630E |
| Connection Type: | Female plug |
| Storage temperature: | -40 … 80 °C |
| Degree of protection: | IP65(Only in the screwed tight state) |
| Order Number: | 077630 |
| Item designation: | C-M26F12-12X1,00PU10,0-MA-077630 |
| Gross weight: | 1,972kg |
| Customs tariff number: | 85444290900 |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Number of pins: | 12(11+PE) |
| Rated voltage: | 50 V |
| Cable length: | 10 m |
| Plug lock: | Screw connection |
| Conductor Cross-section: | 1 mm² |
| Number of conductors: | 12 |
| Cable Type: | straight |
| Drag chain suitability: | No |
| Conductor End: | Sheath stripped |
| Cable Outlet: | straight |
| Test voltage: | 1.5 kV |
| Dynamic bending radius: | 12.5 x outer diameter |
| Cable ambient temperature (dynamic): | -5 … 70 °C |
| Cable ambient temperature (static): | -40 … 80 °C |
| Static bending radius: | 4 x outer diameter |
