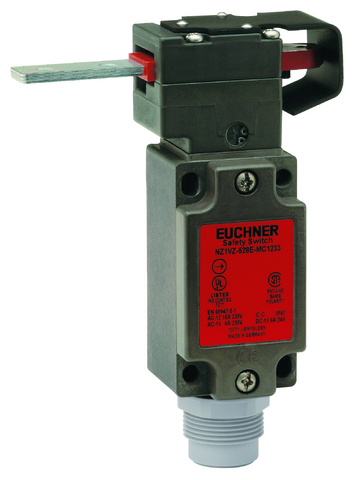

Euchner 077229E | NZ2VZ-538EC1233 : Safety Switch
The NZ2VZ-538EC1233 is a reliable safety switch designed to enhance operational safety in various applications, ensuring that machinery can only be activated under safe conditions.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | 4A gG(> 70 °C => 2A gG) |
| thermal rated current Ith: | 4 A(>70 °C =>2 A) |
| Approach speed: | max. 20 m/min |
| Actuating force: | 35 N |
| Installation Orientation: | any |
| Mechanical Life: | 2 x 10? |
| Switching principle: | Slow-action switching contact |
| Degree of protection: | IP65 |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | NZ2VZ-538EC1233 |
| Gross weight: | 0,405kg |
| ECLASS: | 27-27-26-02 Safety switch with separate actuator (Type 2) |
| Overtravel: | 4 mm |
| Approach direction: | A |
| Number of door position positively driven contacts: | 2 |
| Extraction Force: | 35 N |
| Actuation frequency: | max. 1200 1/h |
| Insertion Depth: | 52 mm |
| Retention Force: | 8 N |
| Product Number | Variant Description |
|---|---|
| NZ2VZ-538EC1233 : Safety Switch | (No others) |
