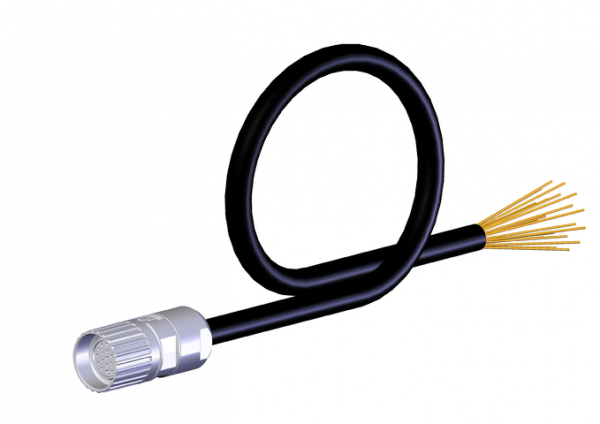

Euchner 077015E | C-M23F19-19XDIFPU08,0-MA-077015 : Cable
$716.67
Explore the Euchner 077015E | C-M23F19-19XDIFPU08,0-MA-077015 : Cable. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 077015E |
| Connection Type: | Female plug |
| Storage temperature: | -25 … 80 °C |
| Degree of protection: | IP65/IP67(locked) |
| Order Number: | 077015 |
| Item designation: | C-M23F19-19XDIFPU08,0-MA-077015 |
| Gross weight: | 1,511kg |
| Customs tariff number: | 85444290900 |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Number of pins: | 19(18+PE) |
| Insertion Cycles: | 50 |
| Rated voltage: | 150 V |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable length: | 8 m |
| Plug lock: | Screw connection |
| Conductor Cross-section: | 16 x 0.5 mm² / 3 x 1 mm² |
| Number of conductors: | 19 |
| Cable Type: | straight |
| Drag chain suitability: | Yes |
| Conductor End: | Sheath stripped |
| Cable Outlet: | straight |
| Test voltage: | 1.5 kV |
| Overvoltage category according to IEC EN 60664-1: | II |
| Conductor Identification: | Color code |
| Dynamic bending radius: | 10x cable diameter |
| Fire Behavior: | flame retardant according to DIN EN 60332-1-2 |
| Sheath Color: | black |
| Cable ambient temperature (dynamic): | -20 … 80 °C |
| Cable ambient temperature (static): | -20 … 80 °C |
| Plug connector designation: | RC(With shield spring) |
