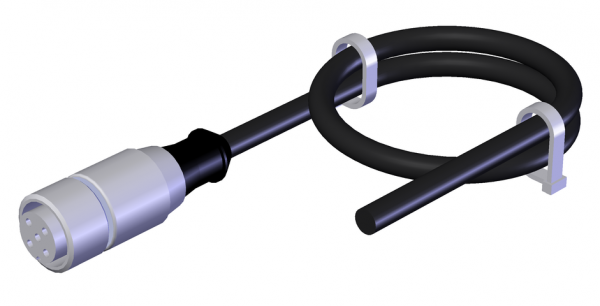

Euchner 073461E | C-M12F05-05X050PU05,0-GA-073461 : Connector
C-M12F05-05X050PU05,0-GA-073461 is a high-quality connector that provides reliable electrical connections in various applications.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP67(Only in the screwed tight state with the relating mating components) |
| Item designation: | C-M12F05-05X050PU05,0-GA-073461 |
| Gross weight: | 0,232kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable Outlet: | straight |
| Number of pins: | 5 |
| Plug lock: | Screw connection |
| Tightening torque: | 0.5 Nm |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -25 … +80 °C |
| Cable ambient temperature (static): | -25 … +80 °C |
| Test voltage: | 1.5 kV(eff./60s) |
| Cable length: | 5 m |
| Conductor Cross-section: | 0.50 mm² |
| Number of conductors: | 5 |
| Cable Type: | straight |
| Drag chain suitability: | yes |
| Conductor End: | trimmed smooth |
| Product Number | Variant Description |
|---|---|
| C-M12F05-05X050PU05,0-GA-073461 : Connector | C-M12F05-05X050PU05,0-GA-073462 : Connecting Cable |
