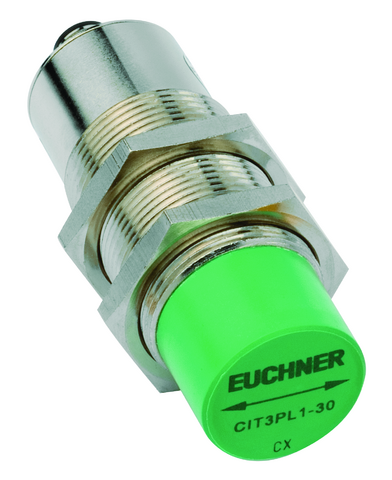

Euchner 071970E | CIT3PL1N30-ST05 : Read Station
$5,894.44
Explore the Euchner 071970E | CIT3PL1N30-ST05 : Read Station. Now sold at Venus Automation. Request a quote now!
| Attribute | Value |
|---|---|
| Product Code: | 071970E |
| LED Display: | Yellow data carrier active |
| Operating voltage DC: | 20 … 24 … 28 V DC(All the electrical connections must either be isolated from the mains supply by a safety transformer according IEC/ EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.) |
| Connection Type: | M12 plug, 8-pin, axial connection(The shield on the connecting cable is connected to the read head’s housing via the knurled nut on the M12 plug connector.) |
| Storage temperature: | -25 … 70 °C |
| Degree of protection: | IP67 |
| Ambient temperature: | 0 … 50 °C |
| Order Number: | 071552 |
| Item designation: | CIT3PL1N30-STA |
| Gross weight: | 0,22kg |
| Customs tariff number: | 85389099990 |
| ECLASS: | 27-28-04-01 Identification, RFID Reader |
| Date Interface: | 4-bit parallel, binary coded via HIGH/LOW level |
| Output Type: | Push-pull |
| Resistance: | 4.5 k? Input resistance |
| Mounting type: | surface |
