| Rated insulation voltage Ui: |
50 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
2A gG |
| Approach speed: |
max. 8 m/min |
| Connection Type: |
Plug connector M12(4-pin) |
| Number NC contacts: |
1 |
| Number of NO contacts: |
1 |
| Design: |

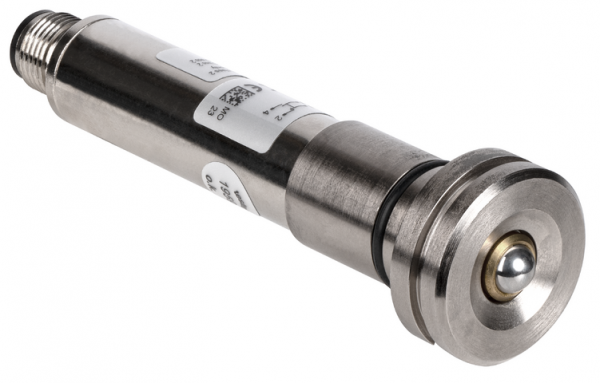

Switch head can be used as an end stop (for hole Ø18H9) |
| Actuating element: |
Ball plunger(short) |
| Actuating force: |
18 N |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10? |
| Switching principle: |
Snap-action switching contact |
| Degree of protection: |
IP67(Mating connector inserted and screwed tight.) |
| Ambient temperature: |
-5 … +60 °C |
| Item designation: |
EGT3SEM4 |
| Gross weight: |
0,135kg |
| ECLASS: |
27-27-06-01 Position switch (Type 1) |
| Repeat Accuracy (absolute): |
±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
