| Rated insulation voltage Ui: |
250 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
4A gG(> 70 °C => 2A gG) |
| thermal rated current Ith: |
4 A(>70 °C =>2 A) |
| Approach speed: |
max. 20 m/min |
| Actuating force: |
5 N |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10? |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP65 |
| Ambient temperature: |
-20 … +80 °C |

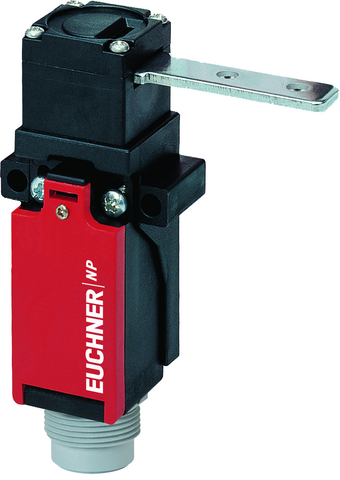

| Item designation: |
NP2-628AB |
| Gross weight: |
0,164kg |
| ECLASS: |
27-27-26-02 Safety switch with separate actuator (Type 2) |
| Mounting type: |
Mounting with 40 mm spacing |
| Approach direction: |
A |
| Number of door position NO contacts: |
1 |
| Number of door position positively driven contacts: |
1 |
| Extraction Force: |
15 N |
| Actuation frequency: |
max. 7000 1/h |
| Retention Force: |
2 N |
| Horizontal Insertion Depth: |
28 mm |
| Vertical insertion depth: |
29.5 mm |
| Horizontal Overtravel: |
2 mm |
| Vertical overtravel: |
1.5 mm |
