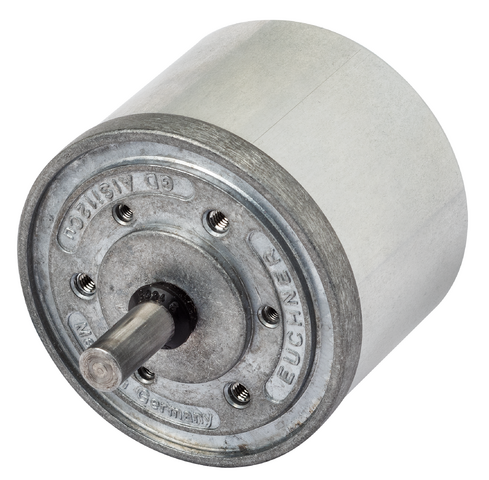

Euchner 054866E | HKD100S100A05 : Hand Wheel

The HKD100S100A05 hand wheel is engineered for reliable performance, providing a comfortable grip for manual adjustments.

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Material: Aluminum
    Connection Cross Section: 0.08 … 2.5 mm²
    Connection Type: Screw terminal, 6-pin
    Ambient temperature: 0 … +70 °C
    Item designation: HKD100S100A05
    Gross weight: 0,343kg
    ECLASS: 27-24-23-07 Command-, control-, signal appliance
    Operating voltage DC: 5 V DC -5% … +5%
    Output Type: RS422
    Output voltage: in accordance with RS422A
    Tightening torque: max. 0.5 Nm
    Shock And Vibration Resistance: according to EN 60068-2-27/-2-6
    Detent mechanism: Magnetic
    Connection cross section AWG: 28 … 12 AWG
    Pulses Per Revolution: 2×100
    Detent Positions Per Revolution: 100
    Product Number Variant Description
    HKD100S100A05 : Hand Wheel HKD100S100G24 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100A05C1671 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100V100A05 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100V100G24 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100A12 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKC100S100A05C1895 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100V100A05C1918 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKC100S100G05 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100G05 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100A05C1960 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKC100S100A05 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKC100S100G24 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100V100G05 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100G05C2136 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100A05C2196 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100A05C2224 : Hand Wheel
    HKD100S100A05 : Hand Wheel HKD100S100G05C2226 : Hand Wheel
